When selecting bubble-tight dampers for specialized ventilation systems, procurement managers and facility engineers face a critical challenge: ensuring absolute contamination control while maintaining operational efficiency in sensitive environments. The KuBu Series Bubble-tight Damper has emerged as a technically superior solution in the airflow management systems market, addressing the complex requirements of partition storage zones and ambient-temperature chambers with exceptional precision.

Understanding Bubble-tight Damper Technology

Bubble-tight dampers are high-airtightness devices engineered to connect ventilation ducts to partitioned storage zones, serving as critical barriers in specialized environments where contamination control is paramount. Unlike standard dampers, these systems must prevent even microscopic particle migration during operations and maintenance procedures. The term “bubble-tight” refers to the damper’s ability to achieve zero air leakage when tested under water submersion—a rigorous standard that ensures complete isolation between controlled environments.

The technical challenge lies in balancing multiple performance requirements: achieving hermetic sealing while enabling smooth operation, withstanding pressure differentials without structural compromise, and maintaining integrity across thousands of operational cycles. These requirements become especially demanding in pharmaceutical manufacturing, semiconductor fabrication, and biological research facilities where even momentary contamination can compromise entire production batches or research protocols.

Critical Pain Points in Filter Replacement Operations

One of the most vulnerable moments in cleanroom operations occurs during filter replacement procedures. Traditional damper systems create a significant contamination risk during this maintenance window. When filters are changed without adequate isolation, airflow containing particles, microorganisms, or chemical contaminants can migrate between zones, exposing personnel to hazardous substances and compromising the integrity of sensitive components.

The KuBu Series directly addresses this vulnerability through its contamination blocking mechanism that completely isolates airflow during filter replacement processes. This design safeguards both maintenance personnel and internal components, eliminating the traditional trade-off between necessary maintenance and contamination risk. Facilities no longer need to implement costly full-system shutdowns or extensive decontamination protocols following routine filter changes.

Beyond contamination, facilities commonly struggle with pressure spikes and dust accumulation in sensitive operational environments. Conventional damper designs with inadequate structural reinforcement create turbulent airflow patterns that generate localized pressure variations. These pressure spikes not only stress mechanical systems but also dislodge settled particles, redistributing contamination throughout supposedly controlled spaces. The accumulation of particulate matter on damper surfaces further degrades performance over time, creating maintenance burdens and progressive efficiency loss.

KuBu Series Engineering Differentiation

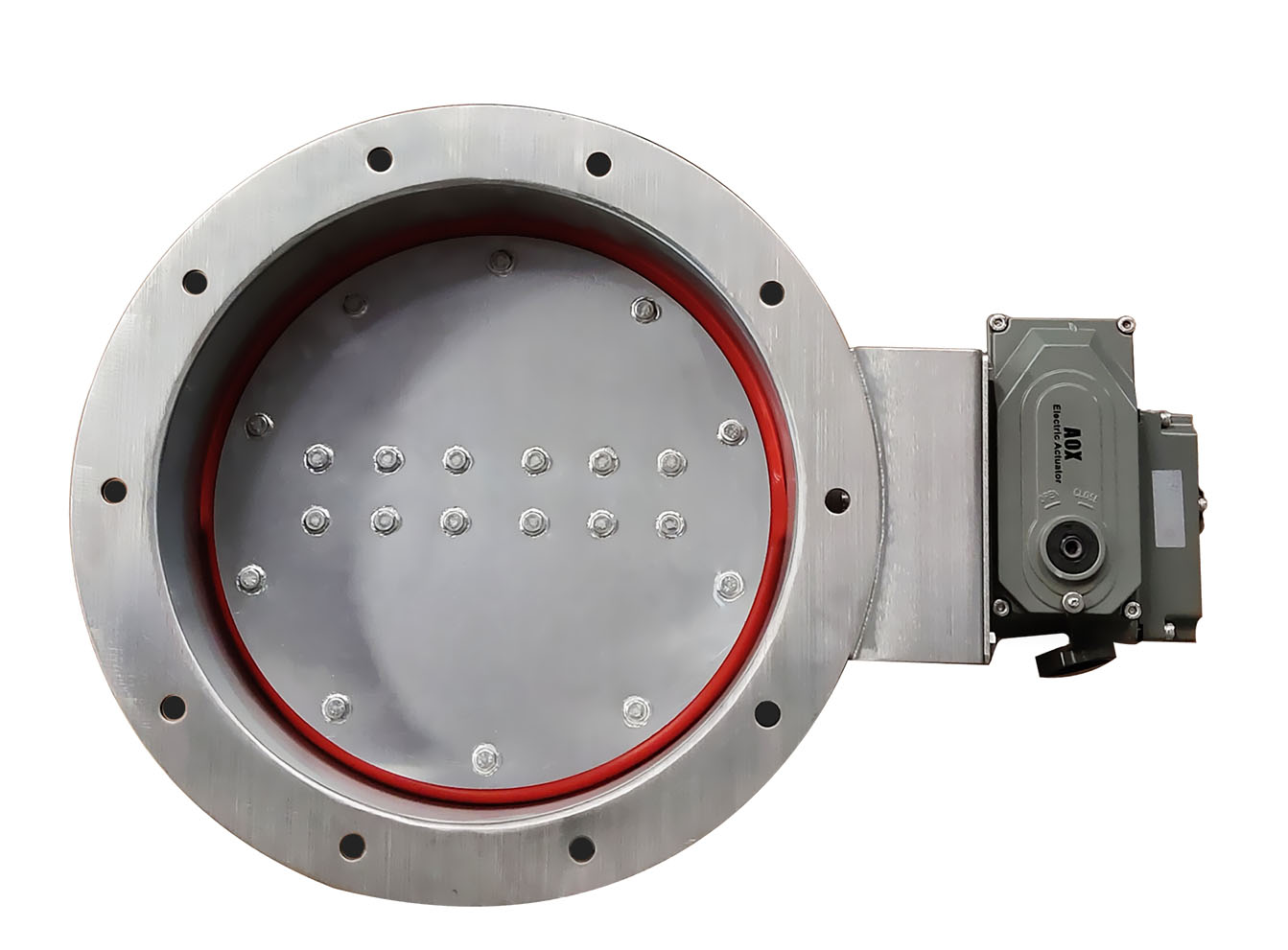

The KuBu Series achieves its superior performance through several interconnected engineering innovations. The structural foundation utilizes 3mm-thick SUS304 stainless steel plate construction that provides exceptional durability and resistance to corrosion, chemical exposure, and mechanical stress. This substantial material specification, complying rigorously with SUS304 standards, ensures structural longevity far exceeding conventional aluminum or thin-gauge steel alternatives commonly found in standard damper systems.

The 5mm-thick flange design represents a critical innovation in pressure management. This robust flange minimizes pressure spikes by providing rigid mounting that eliminates micro-vibrations and flex-induced turbulence. The increased thickness reduces dust accumulation by creating smooth airflow transitions with minimal boundary layer separation, while simultaneously improving overall maintenance efficiency through enhanced accessibility and secure mounting.

Sealing technology forms the core of the bubble-tight performance. The KuBu Series employs a high-temperature rotating rubber seal mechanism that maintains contact integrity across the full range of damper positions. This seal design accommodates thermal expansion, mechanical wear, and pressure variations while maintaining absolute airtightness. The seal material withstands continuous operation within demanding environmental conditions, operating effectively within 20–35% of conventional container capacity ranges.

Performance testing validates these engineering decisions. The system operates reliably under conditions with initial pressure at least 2.5 kPa below atmospheric pressure, demonstrating its capability to maintain seal integrity even under significant negative pressure differentials that would compromise lesser designs. This pressure performance ensures reliable operation in applications ranging from negative-pressure isolation rooms to positive-pressure cleanroom cascades.

Compliance and Operational Versatility

The KuBu Series achieves GB50346-2011 national standard compliance, a rigorous technical specification for cleanroom and controlled environment equipment. This certification requires extensive testing and documentation across multiple performance parameters including leakage rates, structural integrity, and operational reliability. Third-party validation through CNAS and CMA certified inspection provides independent verification of performance claims, giving procurement teams objective assurance of specification compliance.

Operational versatility extends the application range beyond basic isolation functions. The damper is engineered for compatibility with high-frequency switching operations rated to 8000kHz, enabling integration with automated control systems that require rapid response damper modulation. This high-frequency capability supports advanced ventilation strategies including demand-controlled ventilation and dynamic pressure cascade management.

The system accommodates high-voltage kit usage, permitting integration with industrial automation and building management systems without requiring voltage conversion or signal conditioning. This electrical compatibility simplifies installation and reduces system complexity in facilities with existing control infrastructure.

Application flexibility includes compatibility with refrigeration gas and refrigerant status displays on compressors and automatic sprayers, supporting specialized HVAC configurations common in pharmaceutical and food processing facilities. This multi-system compatibility eliminates the need for multiple damper types within complex facilities, simplifying inventory management and maintenance training.

Customization and Product Range

Recognizing that standardized solutions rarely optimize for specific facility requirements, the KuBu Series offers customizable sealing materials and dimensions based on user specifications. Engineering teams work directly with facility designers to optimize damper specifications for unique pressure differentials, chemical exposure profiles, temperature ranges, and spatial constraints. This customization capability ensures optimal performance without the compromises inherent in one-size-fits-all solutions.

The product line encompasses four specialized configurations: cooling airtight valves for refrigerated environments, manual airtight valves for facilities requiring mechanical override capability, suction airtight valves optimized for negative pressure applications, and square airtight valves designed for rectangular duct systems. This comprehensive range addresses diverse architectural and mechanical system requirements across multiple industries.

Real-World Performance in Specialized Environments

The KuBu Series has demonstrated exceptional reliability in ambient-temperature chambers—also known as ambient-temperature funnels—where maintaining precise environmental separation is critical for product integrity. These specialized storage environments require absolute barrier integrity to prevent temperature migration, humidity transfer, and cross-contamination between adjacent zones with different environmental specifications.



Facilities utilizing the KuBu Series report significant improvements in maintenance efficiency due to the contamination-blocking capability during filter replacement. This operational advantage translates directly to reduced downtime, lower labor costs, and improved safety compliance. The robust construction minimizes unscheduled maintenance, with the 3mm stainless steel construction providing resistance to the mechanical stress and chemical exposure that degrades conventional damper systems.

Making the Strategic Selection

When evaluating bubble-tight damper suppliers, technical specifications provide the foundation for informed decision-making. The KuBu Series distinguishes itself through comprehensive compliance certification, robust engineering with substantial material specifications, proven pressure performance under demanding conditions, and operational versatility supporting diverse applications.

The combination of contamination control capability, structural durability, efficiency optimization through advanced flange design, and customization flexibility positions the KuBu Series as a technically superior choice for facilities requiring absolute airflow isolation. For procurement teams responsible for cleanroom integrity, pharmaceutical manufacturing compliance, or semiconductor fabrication reliability, these engineering differentiators translate directly to reduced operational risk and improved long-term performance.

The availability of third-party certification through CNAS and CMA provides objective validation of performance claims, offering procurement professionals the independent verification necessary for confident supplier selection. Combined with GB50346-2011 compliance, these certifications demonstrate commitment to quality standards and technical rigor that aligns with the demanding requirements of specialized ventilation applications.
